Welcome to the Nexpeak Battery Charger Manual, your guide to safe and effective charging․ This manual covers models like NC101, NC201, and NC175, ensuring optimal performance․
1․1 Overview of the Nexpeak Battery Charger Series
The Nexpeak Battery Charger Series offers a range of smart, efficient charging solutions for various battery types․ Models like NC101, NC201, and NC175 provide advanced features such as multiple charging modes, compatibility with 6V and 12V systems, and intelligent charging technology․ Designed for safety and performance, these chargers cater to cars, motorcycles, and specialized batteries, ensuring optimal charging experiences․
1․2 Importance of Reading the Manual
Reading the Nexpeak Battery Charger Manual is crucial for safe and effective use․ It provides essential safety guidelines, operating instructions, and troubleshooting tips․ Understanding the charger’s features and modes ensures proper battery care and prevents potential damage․ Adhering to the manual’s guidelines helps maximize performance and longevity of both the charger and the battery․
Safety Guidelines and Precautions
Always read safety information to avoid electrical shock․ Connect charger correctly (red positive, black negative)․ Ensure AC input voltage is 100-240V for proper operation․
2․1 General Safety Information
- Read all safety information carefully to prevent electrical shock or injury․
- Ensure proper connection: red (positive) to positive terminal, black (negative) to negative terminal․
- Operate the charger in well-ventilated areas to avoid gas accumulation․
- Avoid overcharging, as it may cause battery damage or explosion risks․
- Keep the charger away from water and flammable materials․
- Do not use the charger with damaged cables or improper voltage settings․
2․2 Warning Signs and Symbols
The manual includes essential warning signs and symbols to ensure safe operation․ These include ⚡ for high voltage, ☡ for explosion risk, and ✕ for prohibited actions․ These symbols alert users to potential hazards, such as improper connections or overcharging, and are crucial for preventing accidents and ensuring proper charger use․
Compatible Models and Specifications
This section details the specifications of Nexpeak chargers, including NC101, NC201, NC202, and NC175, ensuring compatibility with various battery types and charging needs efficiently․
3․1 Nexpeak NC101: 12V 6A Battery Charger
The Nexpeak NC101 is a 12V 6A battery charger designed for standard lead-acid batteries․ It features an 8-stage charging process, including desulfurization and trickle charging, ensuring efficient and safe charging․ Compact and lightweight, it’s ideal for cars and small vehicles, with a cord length of 64․8 cm and internal fan cooling for reliability․
3․2 Nexpeak NC201: 12V 10A/24V 5A Battery Charger
The Nexpeak NC201 is a versatile dual-voltage charger, supporting 12V at 10A and 24V at 5A․ It features a seven-stage charging process, including desulfurization, constant current, and constant voltage, ensuring compatibility with various lead-acid batteries․ Its advanced design and multiple charging modes make it suitable for both cars and heavier vehicles, providing efficient and reliable performance․
3․3 Nexpeak NC202: 12V 10A/24V 5A Battery Charger
The Nexpeak NC202 is a high-performance charger with dual voltage support, offering 12V at 10A and 24V at 5A․ It features four advanced charging modes: CAR, AGM/LiFePO4, MOTO, and REPAIR․ Designed with an internal fan for cooling, it ensures efficient charging for various vehicles, including cars and motorcycles, while maintaining safety and reliability․
3․4 Nexpeak NC175: 6V Smart Lead-Acid Battery Charger
The Nexpeak NC175 is a 6V smart lead-acid battery charger and maintainer, designed for smaller vehicles and deep-cycle applications․ It features three modes: STD, REPAIR, and TRICKLE, ensuring efficient charging and maintenance․ Compact and lightweight, it is ideal for 6V batteries, providing a safe and reliable charging experience with advanced smart technology․
Charging Modes and Their Functions
Nexpeak chargers offer multiple modes: STD for standard charging, REPAIR for deep cycles, AGM/LiFePO4 for specialized batteries, and TRICKLE for maintenance, ensuring versatile and efficient charging solutions․
4․1 STD Mode: Standard Charging
STD mode provides a quick and efficient charge for standard lead-acid batteries․ It delivers a consistent output, ideal for everyday use, ensuring your battery reaches full capacity without overcharging, making it suitable for most vehicles and applications that require reliable, straightforward charging․
4․2 REPAIR Mode: Deep Cycle Charging
REPAIR mode is designed for deeply discharged or sulfated batteries, utilizing a 7-stage charging process․ It includes desulfurization and trickle charging to restore battery health․ Ideal for neglected or old batteries, this mode ensures a thorough charge and helps extend battery life by addressing deep discharge issues effectively and safely․
4․3 AGM/LiFePO4 Mode: Specialized Charging
AGM/LiFePO4 mode is tailored for Absorbent Glass Mat and Lithium-Iron Phosphate batteries․ It provides a precise charging algorithm to prevent overcharging and ensure compatibility․ This mode maintains optimal voltage levels, safeguarding battery health and performance, making it ideal for high-end or specialized battery types requiring specific charging protocols for longevity and reliability․
4․4 TRICKLE Mode: Maintenance Charging
TRICKLE mode provides a low-current charge to maintain battery health․ It prevents overcharging and is ideal for long-term storage․ This mode ensures compatibility with lead-acid batteries, keeping them charged without degradation․ It’s designed to extend battery lifespan by delivering a steady, safe flow of power, ensuring readiness for future use without compromising performance․
Step-by-Step Charging Process
Connect the charger to the battery, select the appropriate mode, and monitor progress․ Follow the manual’s guidance for safe and efficient charging, ensuring optimal battery performance always․
5․1 Connecting the Charger to the Battery

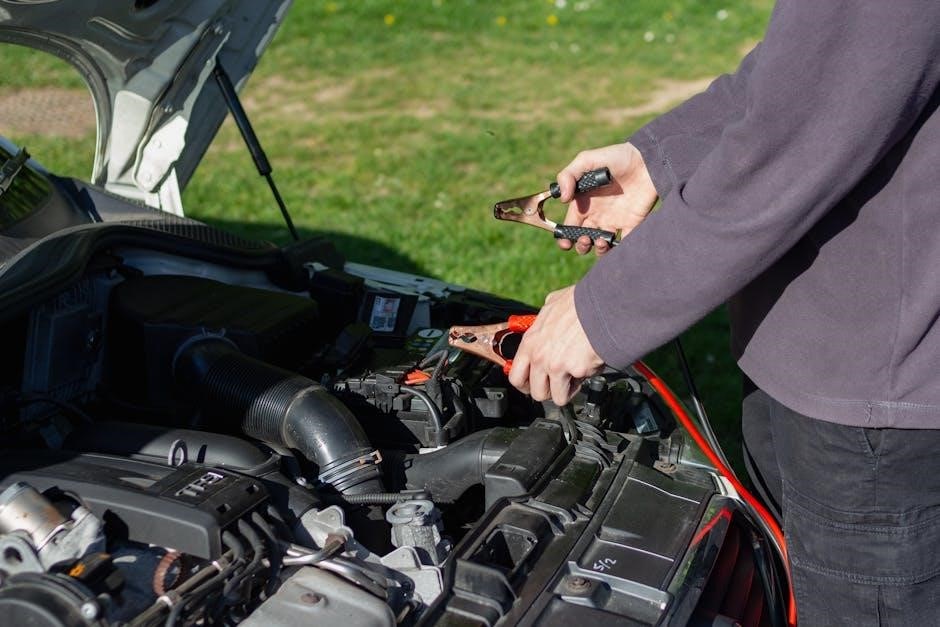

Connect the charger to the battery by attaching the red positive clamp to the positive terminal and the black negative clamp to the negative terminal․ Ensure the charger is turned off before connecting․ Verify that the charger’s voltage setting matches the battery type (6V, 12V, or 24V)․ Double-check all connections for security and avoid reverse polarity to prevent damage․ Once connected, proceed to select the charging mode․
5․2 Selecting the Appropriate Charging Mode
Select the appropriate charging mode by pressing the MODE SELECTION button․ Choose STD for standard charging, REPAIR for deep cycling, AGM/LiFePO4 for specialized batteries, or TRICKLE for maintenance․ Ensure the mode matches your battery type (6V, 12V, or 24V)․ The charger will automatically adjust its settings for optimal charging once the mode is selected․
5․3 Monitoring the Charging Progress
Monitor the charging progress using the charger’s LED indicators or digital display․ Ensure the battery terminals are securely connected and the charger is in the correct mode․ The charger will display charging status, voltage, and current․ Allow the process to complete without interruption for optimal results․ Always refer to the user manual for specific display interpretations and error codes․
Technical Specifications and Compatibility
Nexpeak chargers support 12V/24V systems, compatible with Lead-Acid, AGM, and LiFePO4 batteries․ They operate on 100-240V AC input, ensuring versatility for various vehicles and applications․
6․1 Input and Output Voltage Requirements
Nexpeak chargers require an AC input of 100-240V, ensuring global compatibility․ Output voltages range from 12V to 24V, tailored for Lead-Acid, AGM, and LiFePO4 batteries․ The chargers automatically adjust to the battery type, providing precise charging for optimal performance and safety․ This feature ensures efficient charging across various vehicle and battery configurations․
6․2 Compatible Battery Types
Nexpeak battery chargers support Lead-Acid, AGM, GEL, WET, and LiFePO4 batteries, compatible with 12V and 24V systems․ They are ideal for cars, motorcycles, and marine applications, ensuring safe and efficient charging․ Not compatible with lithium-ion batteries․ Their versatility accommodates various vehicle types, making them suitable for different user needs while maintaining optimal performance across all compatible battery types․
6․3 Charging Time Estimates
Charging times vary based on battery type and mode․ Normal car batteries take about 4 hours in repair mode, while motorcycle and wet batteries charge in 2 hours․ AGM and LiFePO4 batteries may require longer durations due to specialized charging profiles․ Actual time depends on battery capacity and selected charging mode efficiency․
Maintenance and Troubleshooting
Regularly inspect terminals and cables for damage․ Clean corrosion using a wire brush․ For issues, consult the manual or contact customer support for assistance․
7․1 Regular Maintenance Tips
Check terminals for corrosion and clean with a wire brush․ Store the charger in a cool, dry place away from direct sunlight․ Regularly inspect cables for wear and tear, replacing them if damaged․ Ensure the charger is unplugged when not in use to prevent electrical issues․ Follow these steps to maintain efficiency and safety․
7․2 Common Issues and Solutions
If the charger doesn’t turn on, check the power source and connections․ For slow charging, ensure correct mode selection․ If error lights appear, refer to the user manual or reset the charger․ Clean terminals if charging is inconsistent․ Contact customer support if issues persist beyond basic troubleshooting steps․ Regular checks can prevent most common problems․
Warranty and Package Contents
Your Nexpeak charger comes with a detailed warranty and package contents, including the charger, user manual, and necessary cables, ensuring a comprehensive setup for optimal performance․
8․1 What’s Included in the Package
The package includes the Nexpeak battery charger, a detailed user manual, and necessary connection cables․ Additional accessories may vary by model, ensuring a complete setup for easy charging and maintenance of your battery․
8․2 Warranty Information
Your Nexpeak battery charger is backed by a 2-year warranty covering manufacturing defects from the date of purchase․ The warranty is limited to the original purchaser and requires proper registration․ For detailed terms and conditions, refer to the user manual provided with your purchase․ Warranty applies under proper usage and registration conditions․
Environmental and Storage Guidelines
Store your Nexpeak charger in a cool, dry place away from direct sunlight to prevent damage․ Ensure proper environmental disposal to avoid harming ecosystems and follow local regulations․
9․1 Proper Storage Conditions
Store the Nexpeak battery charger in a cool, dry place, away from direct sunlight and moisture․ Avoid extreme temperatures (below 32°F or above 113°F)․ Keep it away from flammable materials and ensure the area is well-ventilated․ Do not store in enclosed spaces without proper airflow to prevent damage and maintain efficiency․
9․2 Disposal Instructions
Dispose of the Nexpeak battery charger responsibly․ Recycle at authorized electronic waste centers to minimize environmental impact․ Do not dispose of in regular trash or incinerate, as it may release hazardous materials․ Remove batteries if applicable and follow local regulations for safe disposal․ Proper disposal helps protect the environment and prevents potential hazards․
Always follow the manual for safe, efficient charging․ Regularly inspect cables and batteries for damage․ Store chargers in cool, dry places and dispose of them responsibly to protect the environment․
10․1 Key Takeaways
Always use the correct charging mode for your battery type․ Regular maintenance ensures longevity․ Store chargers in cool, dry spaces․ Follow safety guidelines to avoid electrical hazards․ Proper disposal protects the environment․ Refer to the manual for model-specific instructions and troubleshooting tips to maximize performance and safety․
10․2 Best Practices for Long-Term Use
Regularly inspect cables and connections for damage․ Always store the charger in a cool, dry place․ Use the correct charging mode for your battery type to prevent overcharging․ Keep the charger clean and avoid extreme temperatures․ Refer to the manual for troubleshooting and maintenance tips to ensure optimal performance and longevity of your Nexpeak charger․
